High-Speed Vertical Looper Bright Annealing Line
Vertical strip accumulator layout for continuous coil changeover, stable strip tension and compact high-output production.
Strip accumulator10-120 m/min
View line

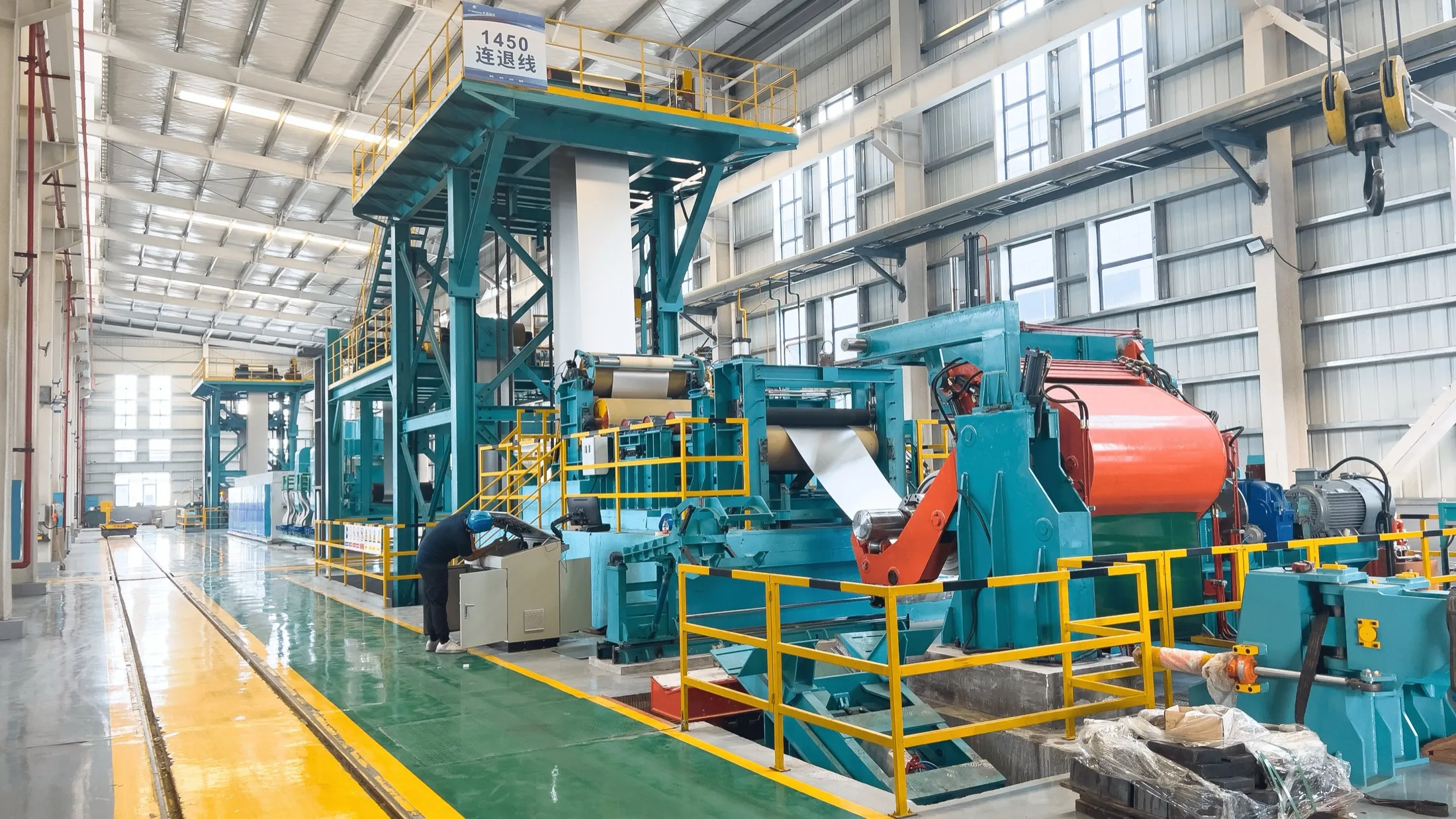

Continuous Bright Annealing Lines
Bright annealing lines for strip mills.
AKS designs and builds bright annealing furnace lines for stainless steel strip producers who need stable surface brightness, controlled atmosphere, lower fuel consumption and reliable 24/7 production.
±2°CHeating-zone temperature accuracy
<10 ppmControlled atmosphere target
10-120Strip speed, m/min
23-26Reference gas use, m³/t
Engineering Focus
Not just a hot furnace. A controlled strip-processing line.
Every AKS line connects strip accumulation, heating, atmosphere protection, cooling, energy monitoring and safety control into one production system.
850-1550Strip width, mm
0.1-3.0Strip thickness, mm
25 tMaximum coil weight
Product Architecture
Choose the line layout first. Tune the heat source second.
AKS supplies vertical looper, horizontal looper, gas-fired and electric heating configurations for BA/2BA stainless steel strip and selected non-ferrous strip applications.

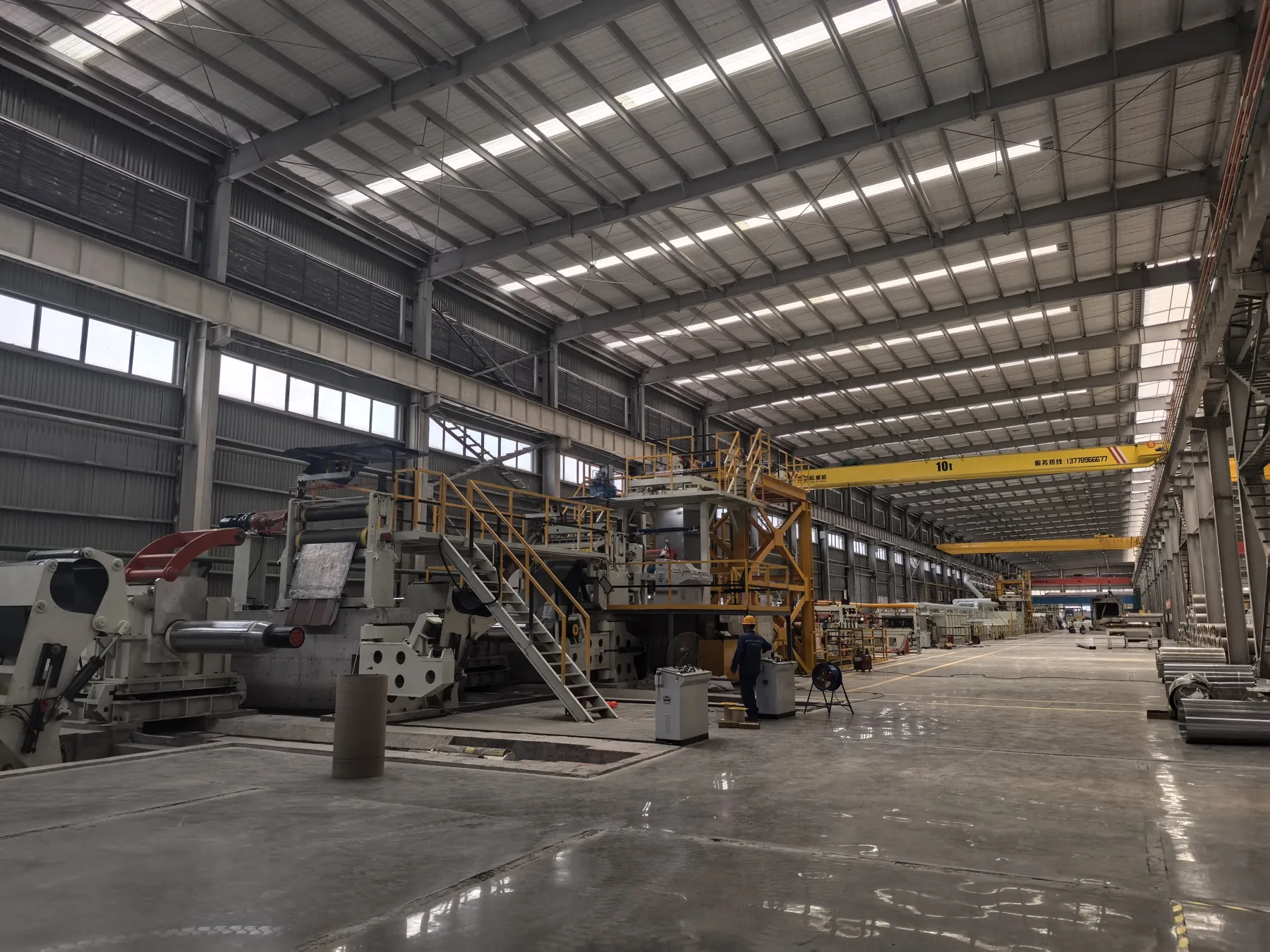

Horizontal Looper High-Speed Bright Annealing Line
Accessible line arrangement for plants that prioritize maintenance routes, flatness control and customized foundations.
Custom layoutBA/2BA finish
View line

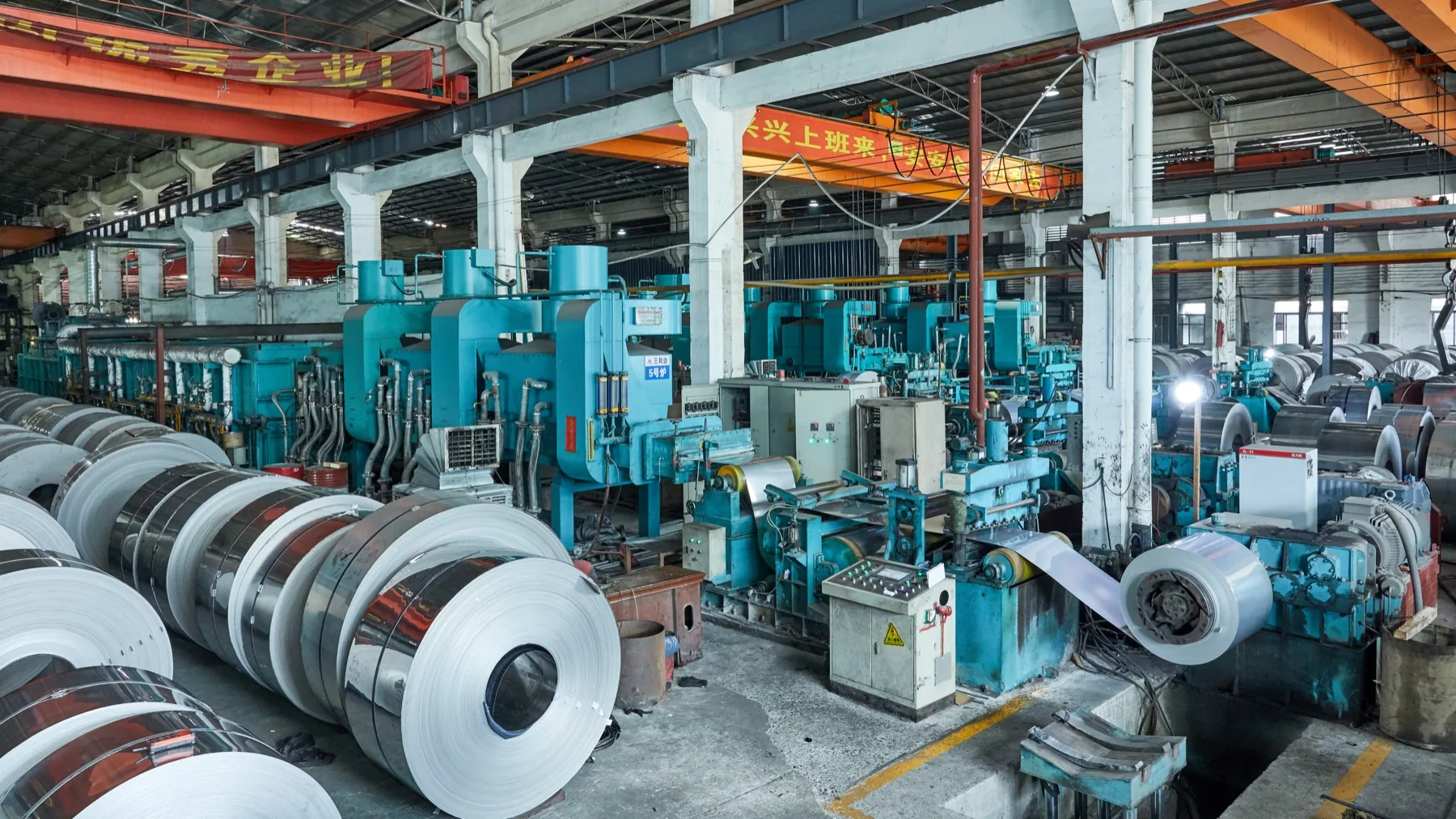

Gas-Fired Bright Annealing Furnace
Natural gas or LPG heating with air-gas ratio control, heat recovery and low fuel consumption per tonne.
Gas-fired furnaceHeat recovery
View furnace

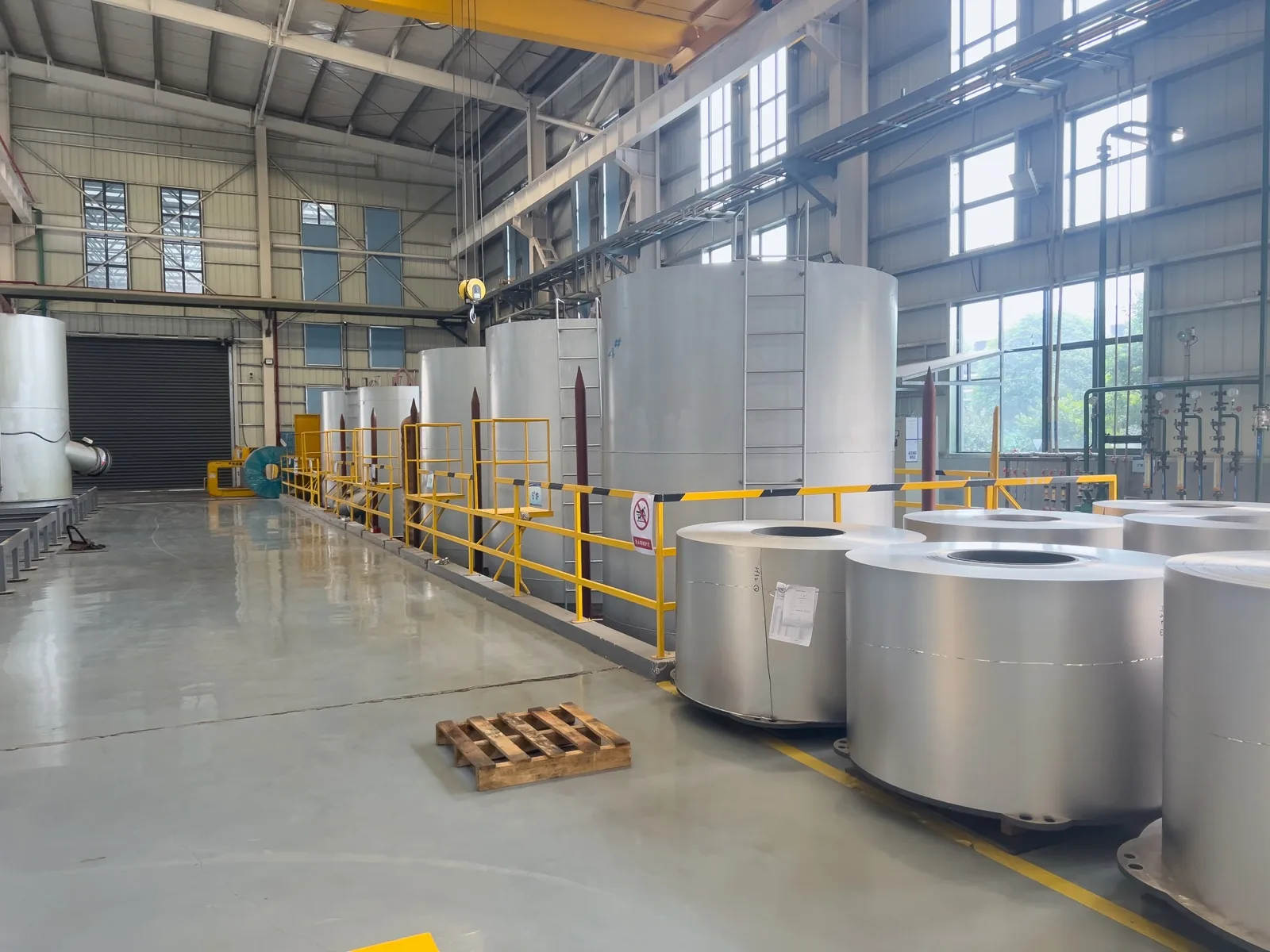

Electric Bright Annealing Furnace
Clean and precision electric heating for bright annealing processing and advanced strip materials.
Electric heatingClean heating
View furnaceSpecification Baseline
Built around the numbers purchasing teams ask for first.
The final furnace length, muffle design, heating zones, strip accumulator capacity and cooling configuration are engineered around the customer’s material, strip gauge, line speed and plant envelope.
| Strip width | 850-1550 mm |
|---|---|
| Strip thickness | 0.1-3.0 mm |
| Annealing temperature | 750-1100°C |
| Product finish | BA / 2BA stainless steel strip |
| Protective atmosphere | Nitrogen, hydrogen, dissociated ammonia or argon |

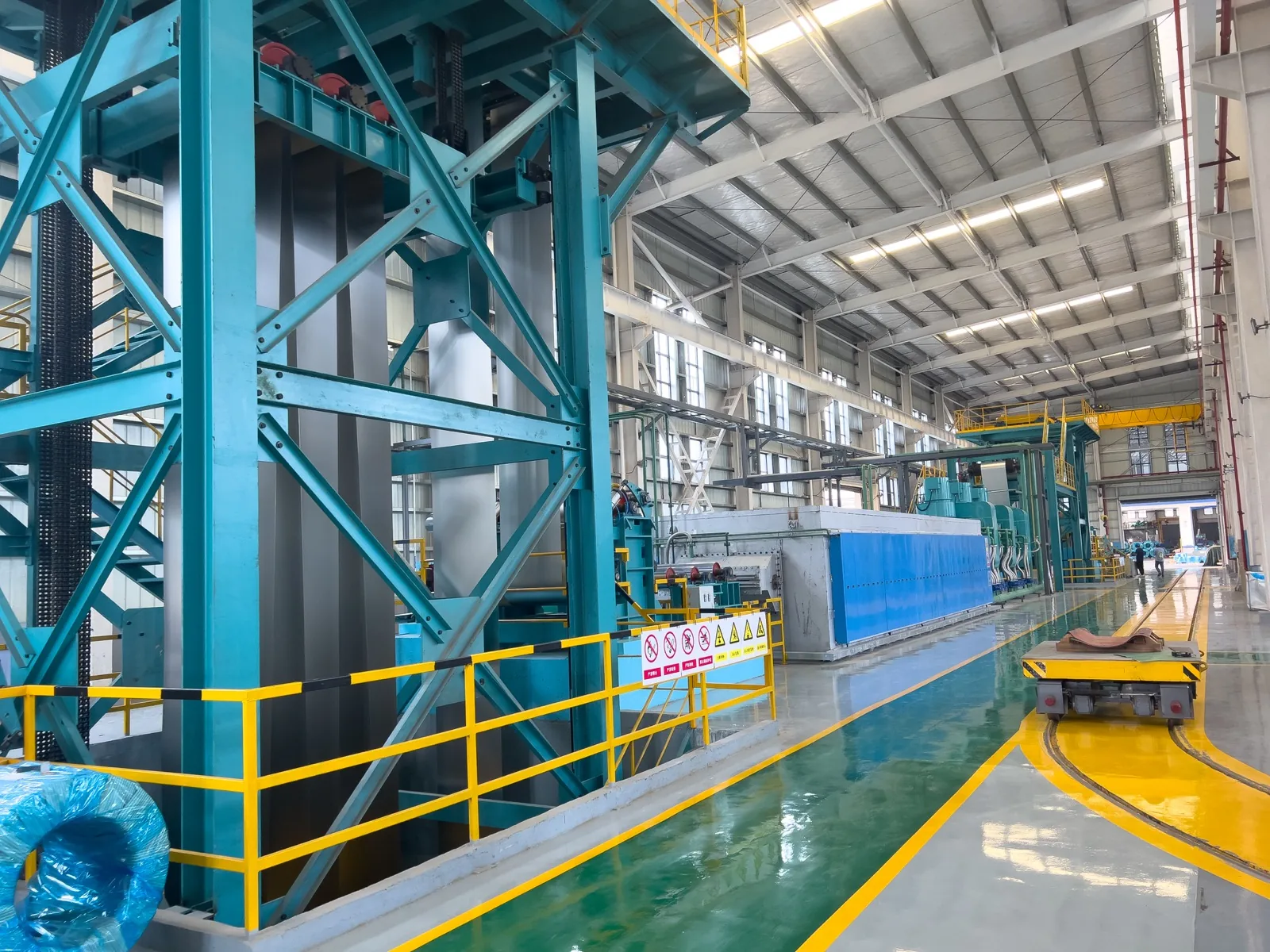

Process Control
Temperature, dew point, atmosphere and energy data in one control layer.
AKS lines can use Siemens or Inovance PLC, touchscreen HMI, process data logging, fault alarms and real-time energy monitoring for production teams that need traceable furnace conditions.
- Heating-zone temperature accuracy up to ±2°C.
- Controlled atmosphere target below 10 ppm.
- Explosion protection, over-temperature alarm and power-loss protection.
Why Mills Compare AKS
Lower fuel use matters only when surface quality and uptime stay stable.
AKS positions its furnace lines around measurable production outcomes: gas consumption, flat strip shape, lower exit temperature, surface brightness and continuous equipment availability.
Saving 2-5 m³ of gas per tonne can translate into a 10-15% reduction in annual operating cost.
AKS ROI reference| Production factor | AKS reference | Typical market level |
|---|---|---|
| Output | 10-11 TV reference | 9-10 TV or lower |
| Gas consumption | 25-27 m³/t | 30+ m³/t |
| Flatness | No center wave or edge wave in target process window | Higher risk of center or edge wave |
| Cooling result | Lower exit temperature, bright white strip surface | Higher exit temperature, yellowing risk |
| Stability | High continuous operation target | Medium stability |

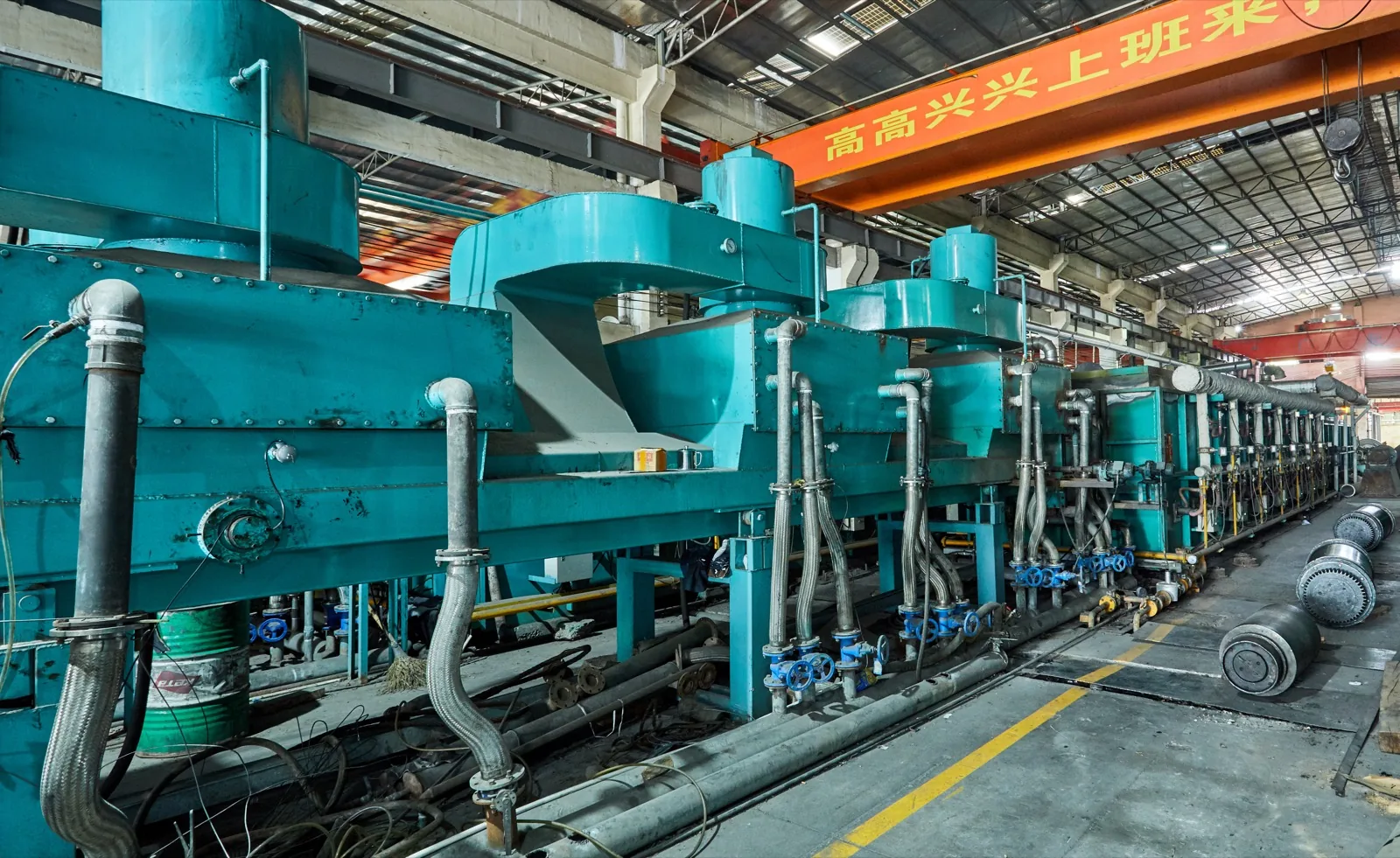

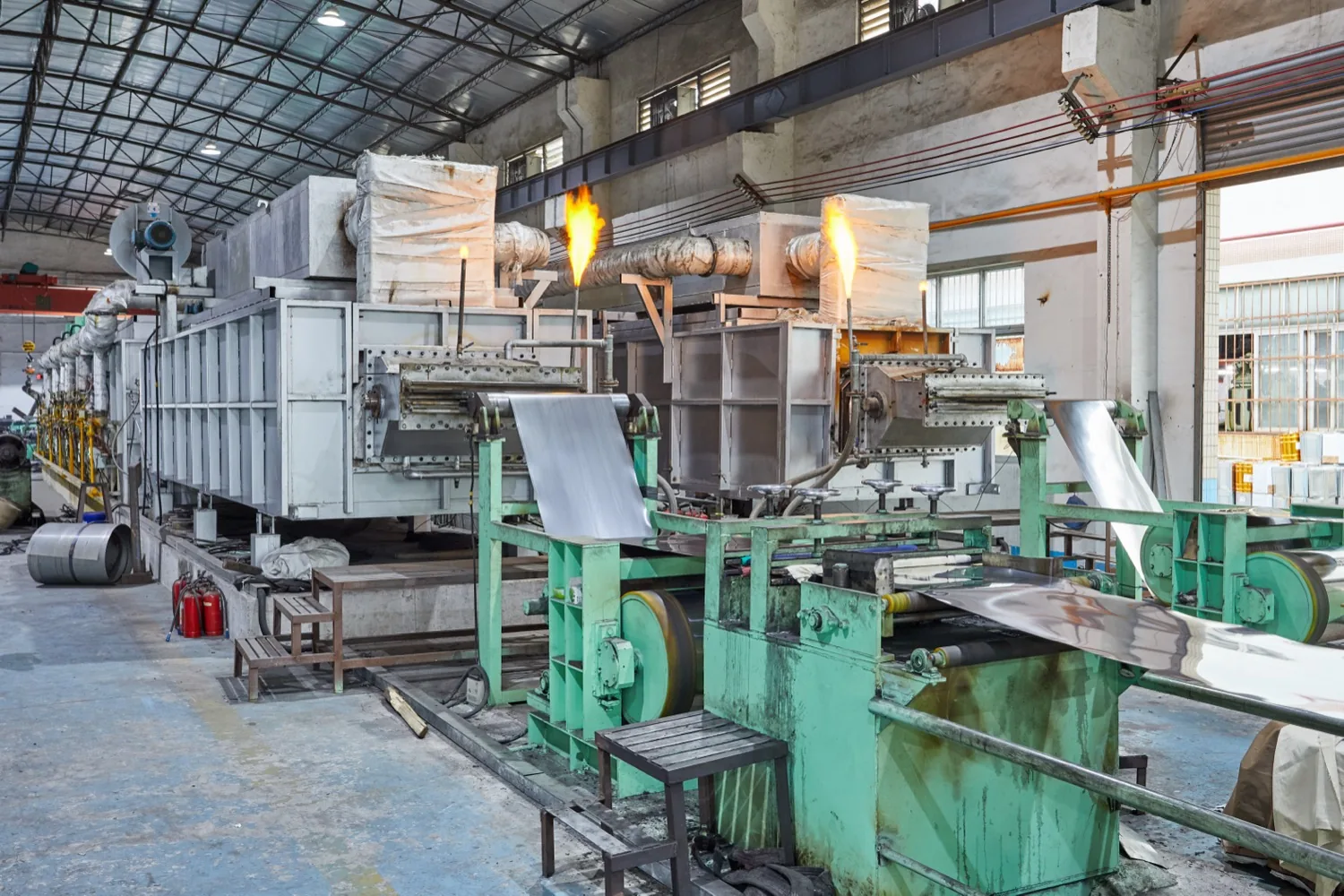

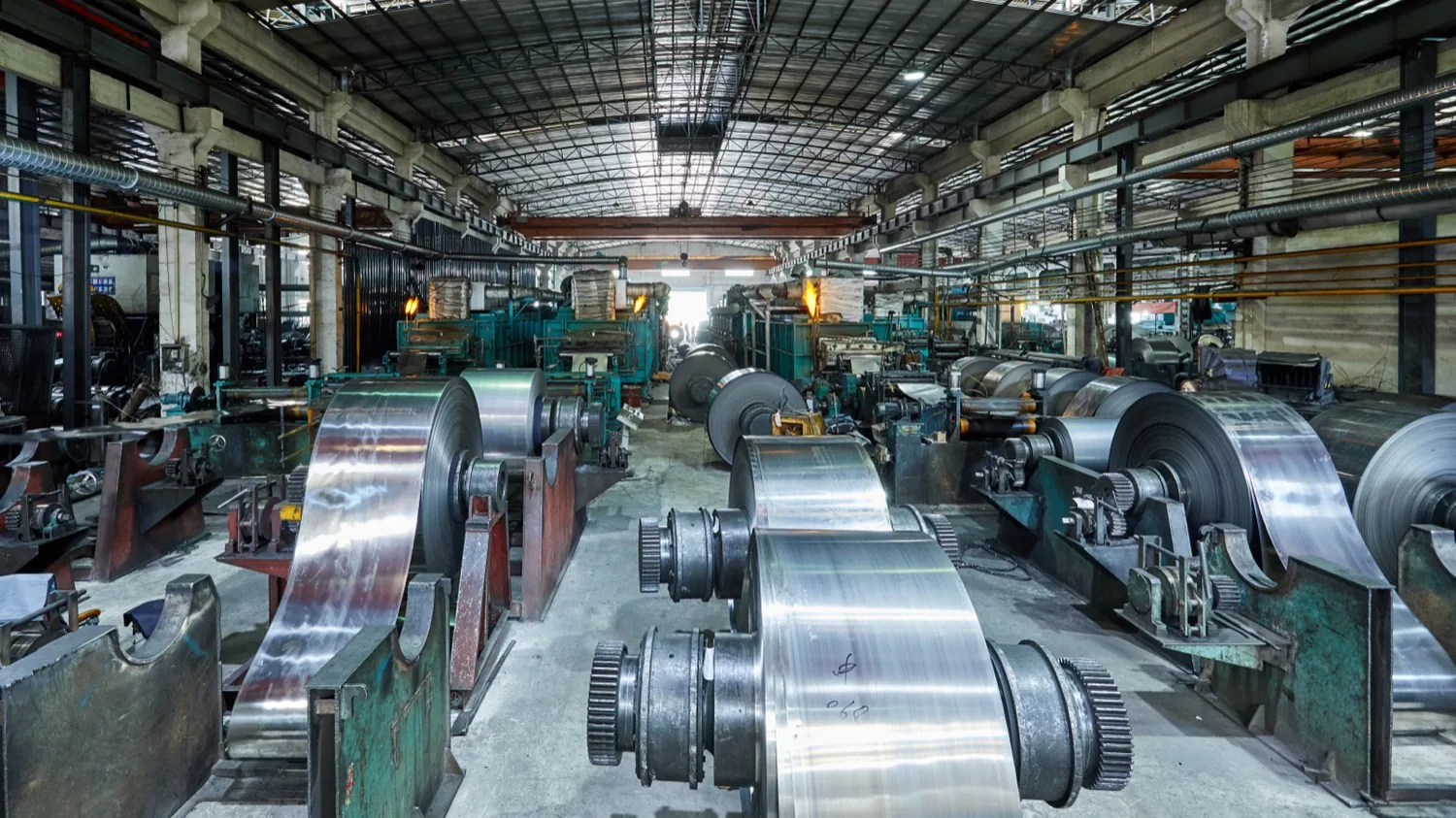

Factory Evidence
Real production-line imagery, not generic furnace renderings.

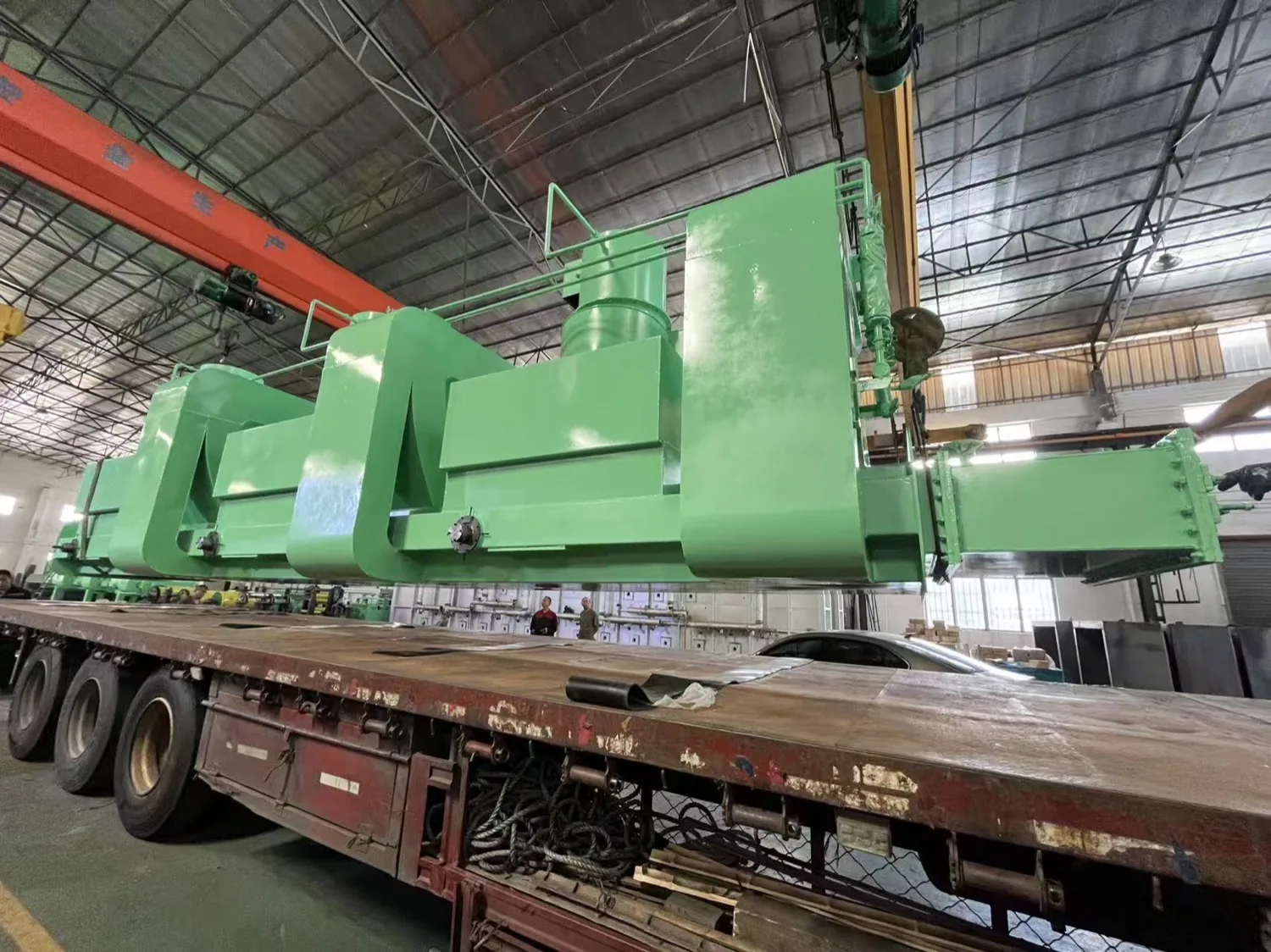

The site uses AKS project and shipment images to communicate equipment scale, shop-floor conditions and delivery capability.
Technical Insights
Search-friendly process content for serious buyers.
Surface Quality

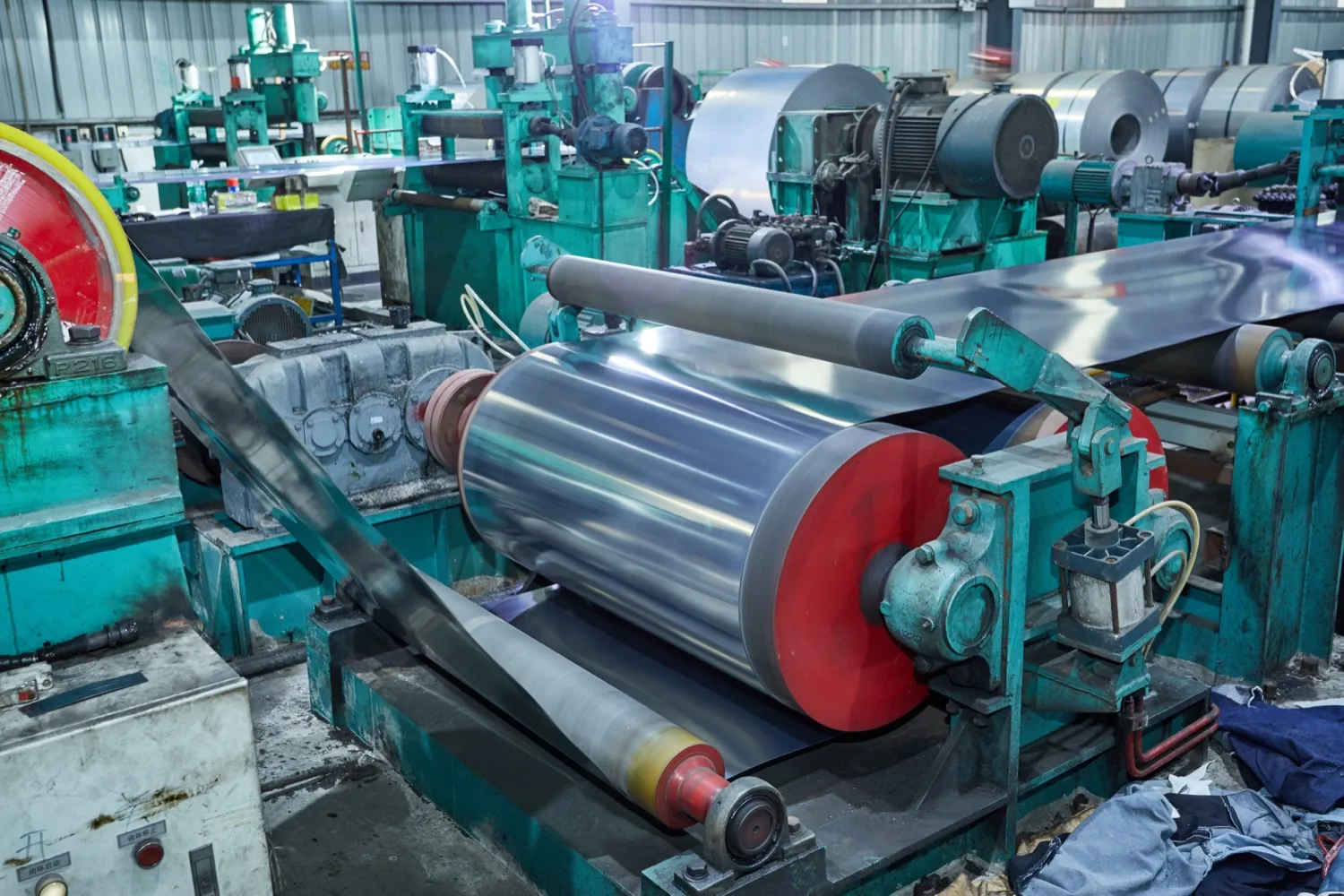

What Controls BA Surface Brightness in a Bright Annealing Line?
Atmosphere purity, dew point, temperature uniformity and cooling temperature all matter.
Read articleEnergy
How a Gas-Fired Bright Annealing Furnace Reduces Fuel Use
Combustion ratio control, insulation and heat recovery drive lower m³/t.
Read articleFlatness
Cooling Control, Exit Temperature and Strip Flatness
Cooling is a production variable, not just the final section of the furnace.
Read articlePlanning a new BA/2BA strip annealing line?
Share strip width, gauge range, material grade, target hardness, line speed, fuel conditions and plant dimensions. AKS will help determine the suitable line layout and heat source.
